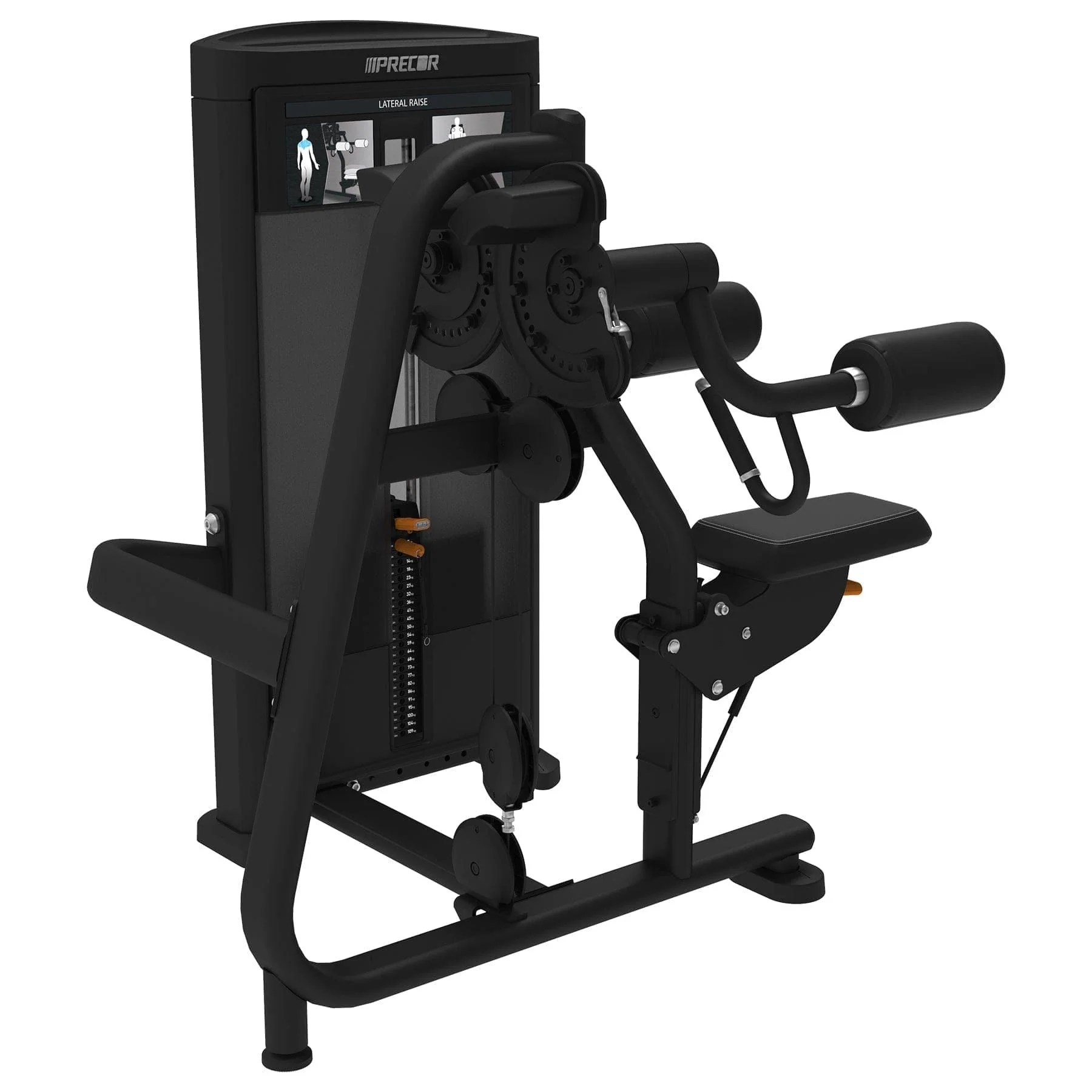

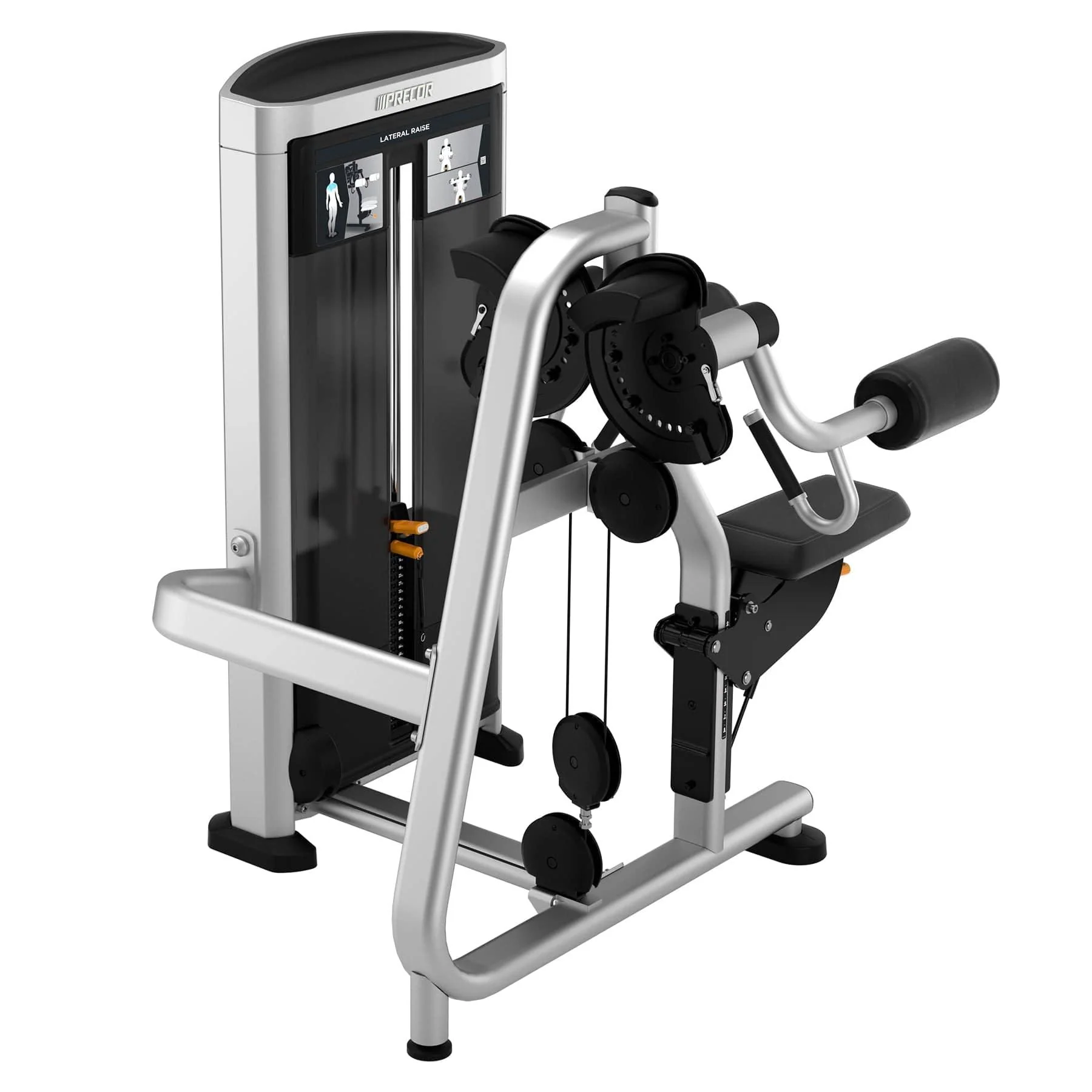

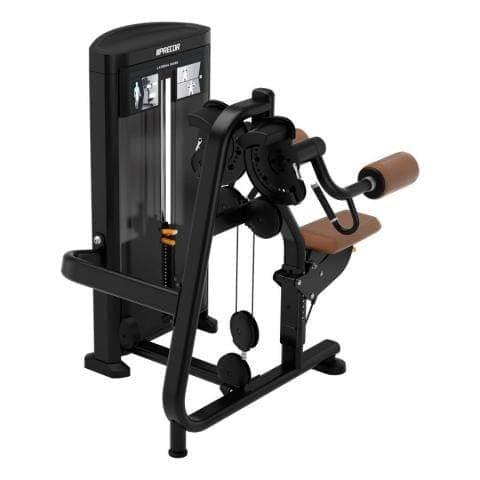

-65%Precor Resolute Series Lateral Raise (RSL0504)ā
$6,070.00
$2,124.50The Story
The design of the Resoluteā¢ Strength Lateral Raise allows exercisers to easily adjust the seat height from a seated position to ensure shoulders are properly aligned with the pivot points. The upright, open design makes the Lateral Raise easy to enter and exit.
- Designed for proper biomechanics
- Fixed handles allow for proper positioning
- Roller pads for comfortable range of motion
[SPECIFICATION]
Equipment Features
| Weight Stack | Units have fully shrouded weight stacks in full compliance with ASTM and EN standards. Each selector plate is entirely precision-machined on all surfaces. Top plate has replaceable precision self-lubricating bushings. The plates feature a black painted protective finish. Guide rods are precision centerless ground, polished, with corrosion-resistant plating for smooth operation and rust retardation. The weight stack is elevated to facilitate user pin selection from seated position. |
| Upholstery | Premium-quality 3D urethane molded-foam padding for maximum comfort. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Automotive-grade, two-textured fabric features double top stitching on all seams. |
| Adjustable Seat | Yes, gas-assisted ratcheting seat adjustment |
| Adjustments | Ratcheting seat adjustments require only a lift to release the lever. Handles include slip-resistant rubber sleeves with machined alloy end-caps. Adjustment points are highlighted with a contrasting color for ease-of-use. |
| Instructional Placard | Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone or Preva app. |
| Bearings and Pivot Points | Oversized, linear, re-circulating ball bearings run on case-hardened shafts and are sealed and self aligning. Pivot points and joints feature motor-grade sealed ball bearings, or sleeve bearings, utilizing either oil-impregnated bronze bushings or pre-lubricated nylon bushings. Bolts are grade 5 or above in all applications. |
| Water Bottle and Accessories Holder | The drink-and-accessory holder features large open, even surfaced area, easily accessible and easy to keep clean. |
| Pulleys and Cables | Glass-fiber-reinforced nylon pulleys provide strength and durability, while precision ball bearings allow effortless rotation. Cables use a 7x19 stranded wire configuration for added strength and flexibility and are coated with black pressure-extruded nylon for long lasting protection and a smooth feel. 3/16-inch (.48 cm) wire is coated to 1/4 inch (.64 cm) with a breaking strength of 4200 lb (1905 kg) and 1/8 inch (.32 cm) wire is coated to 3/16 inch (.48 cm) with a breaking strength of 2000 lb (907 kg). |
| Frame and Finish | The frame is 11 gauge (.120 in) 2x4" electroweld steel racetrack tubing. Movement arms are made of electroweld steel round tubing. The five-stage material prep/wash process is followed by an electrostatically applied, heat-cured powder coat. |
| Bolt Down Capability | Yes |
| General Features | Gas-assisted seat and inward-facing orientation helps user easily align shoulder joint to pivot. Padded arm pads and fixed handles allow for easy user positioning. |
Equipment Specifications
| Standard Shroud Color | Black |
| Incremental Add-on Weight | 5 lb (2.3 kg) |
| Weight Stack | 160 lb / 73 kg |
| Workout Area (L x W) | 53 L x 56 W inches / 134 L x 142 W cm |
| Standard Frame Colors | Black Pearl; Gloss Metallic Silver |
| Stocked Upholstery Colors | All Spice, Black, Grey |
| Additional Upholstery Options (Additional lead time applies) | American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate |
Equipment Dimensions and Weight
| Length | 54 inches / 137 cm |
| Width | 49 inches / 125 cm |
| Height | 58 inches / 148 cm |
| Equipment Weight | 510 lb / 232 kg |
Shipping Dimensions and Weight
| Shipping Weight | 607 lb / 276 kg |
Regulatory
| EN957 | Yes |
| ASTM | Yes |
